Cortizo 4700
Innovative sliding system suitable for large spans with modern aesthetics, thermal and acoustic performance.
Cortizo 4700 Features
Start with the published benefits that most affect performance, appearance and day-to-day use.
Elegant & Efficient Sliding Solutions
The Cortizo 4700 offers both in-line slider and lift & slide versions, perfect for large openings. It provides a sleek design with reduced interlock sections and expansive glazing options.
Versatile Opening Options
Choose from 1, 2, 3 or 4 rail systems, tailored to fit your space needs.
High Performance
Thermally broken system with acoustic insulation up to 40 dB and maximum water tightness.
Detailed Specifications
Explore the technical efficiency of the Cortizo 4700 with superior thermal and acoustic insulation, combined with robust structural performance.
- Available in in-line slider and lift & slide versions.
- Frame width options of 115 mm, 120 mm and 185 mm with 3 rails.
- Sash dimensions up to 2500 mm width and 3000 mm height.
Enhanced Durability
- Air permeability Class 3* / 4**.
- Water tightness Class 7A.
- Wind resistance Class C5* / C2**.
Product Specifications
Move between the practical benefits, verified performance data, product videos and downloadable technical literature.
What this system is designed to do
Use these practical characteristics to judge whether the product suits the opening, architecture and way the space will be used.
| Opening Possibilities | In-line slider, lift & slide, 1, 2, 3, 4 rail options. |

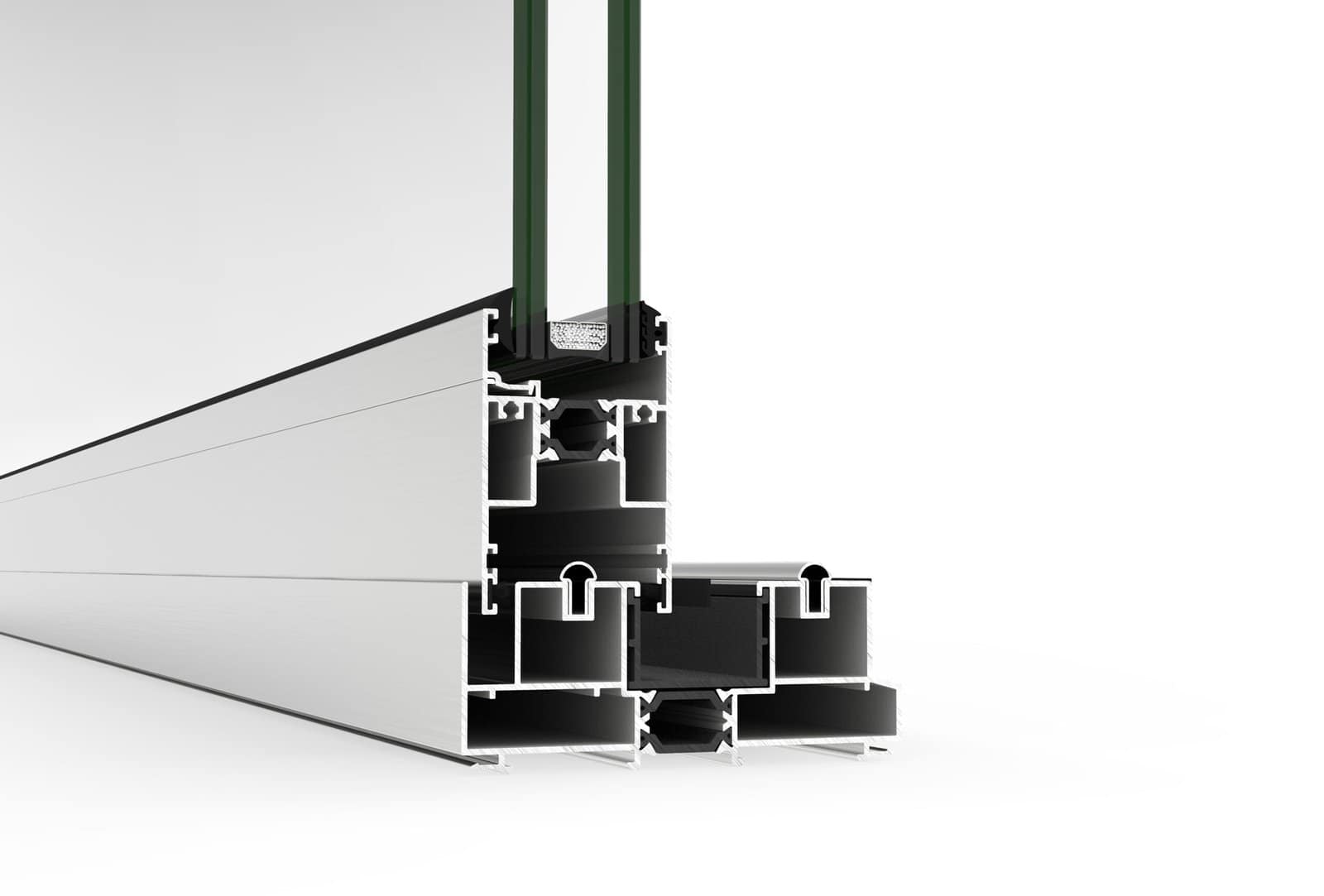

| Sightlines | Frame 115 mm, 120 mm, 185 mm |
| Profile Thickness | Balcony 1.5 mm |
Compare the measurable specification
Review the available thermal, weather, acoustic, security and dimensional evidence before confirming the project-specific configuration.
| Transmittance Uw | ≥ 1.1 W/m²K |
